Opti-Din Switch Panel

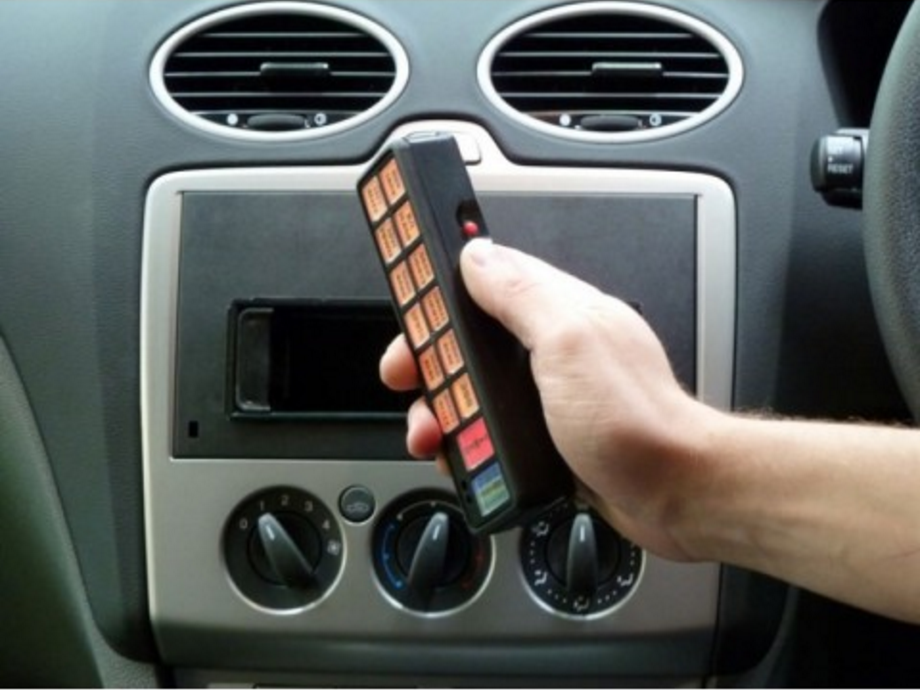

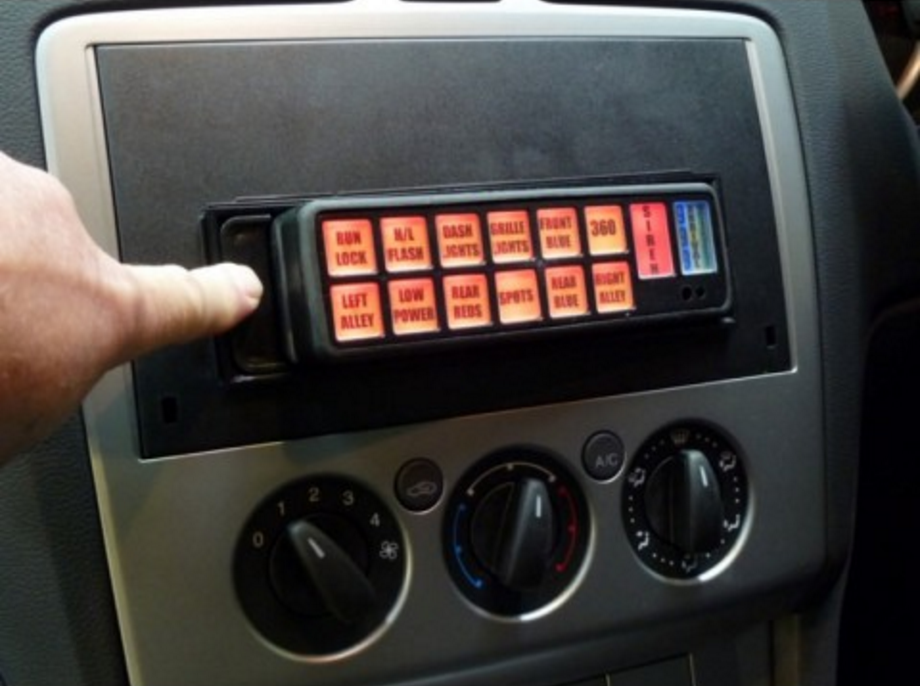

Retaining and enhancing the features found in the traditional industry standard Opti-Link, the Opti-Din provides the next step forward in equipment control for emergency service vehicles.
Features

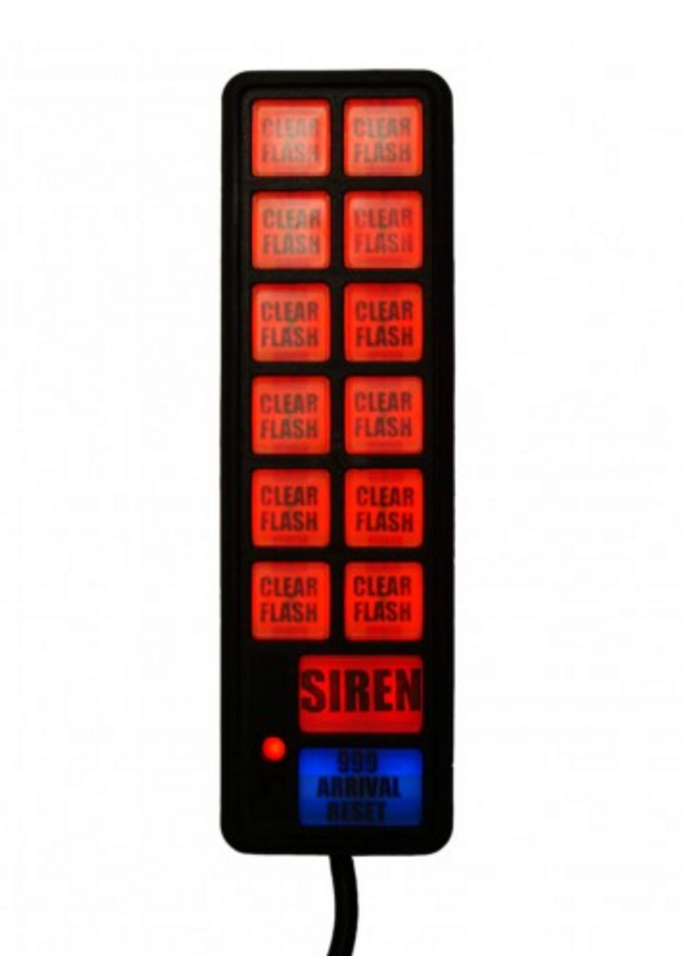

- Individual switches with clear interchangeable legends.
- Bespoke legends are available to order. Switch positions may be interchanged by the installer.
- 12 programmable switches for latching, momentary and mutually exclusive actions.
- Combined ‘999’, ‘ARRIVAL’, ’RESET’ switch is installer programmable to operate a pre selected switch configuration.
- Back lighting on all switches allows switch legends to be easily visible at night. ‘999’ button has blue back lighting for easy identification.
- Auto dim of active switches in low light conditions minimises driver distraction at night.
- Microphone and PTT (press to talk) switch for PA input when connected to a Woodway BETA amplifier. PA volume may be set from the switch panel.
